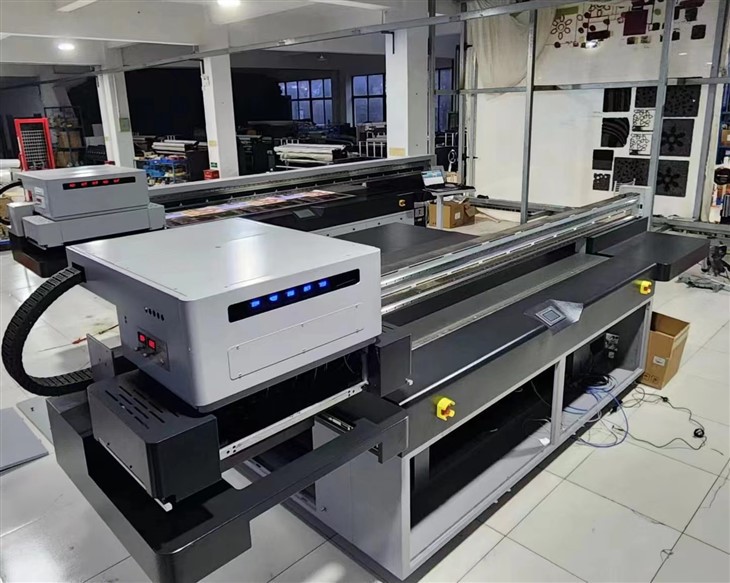

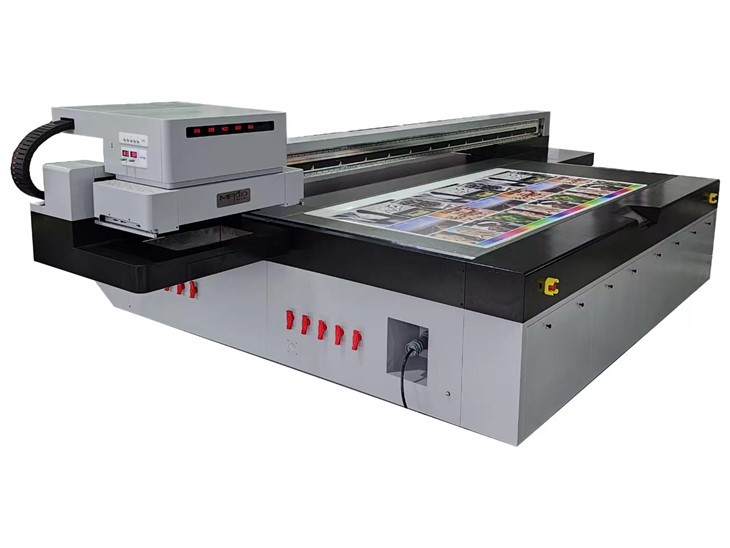

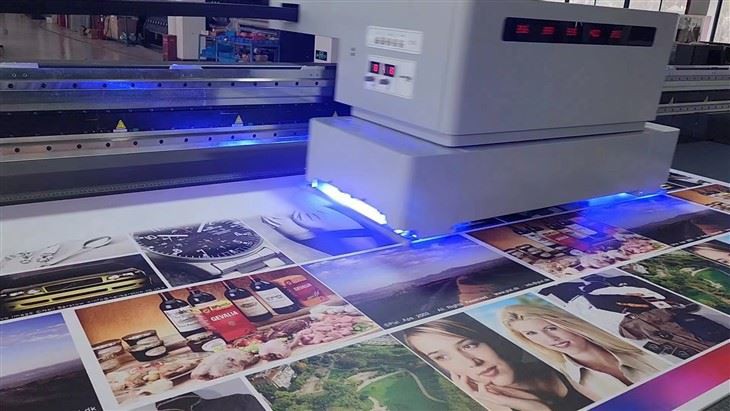

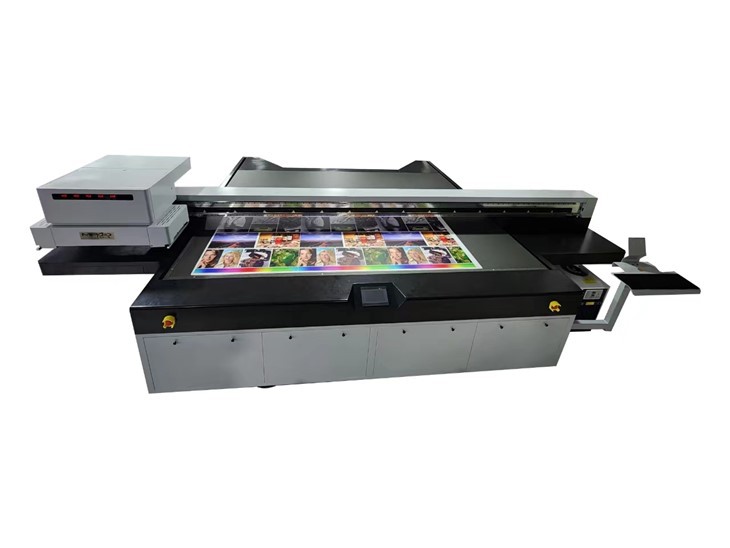

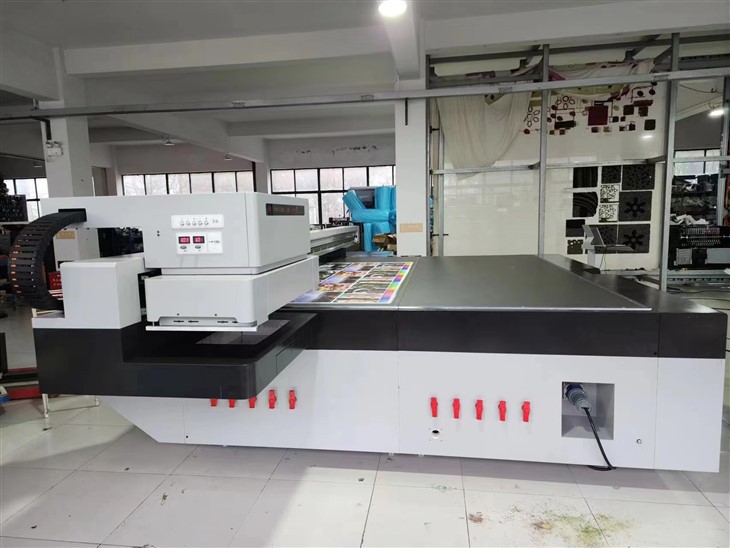

Flatbed Digital Printer

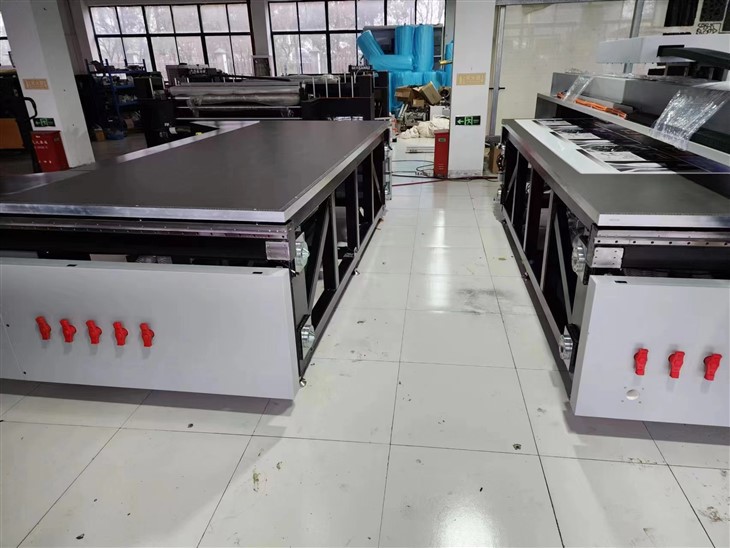

Structure:The Flatbed Digital Printer features a solid machine chassis provides stable platform for long use life of 7-10 years. High quality table with excellent flatness as accurate printing platform with efficient vacuum suction and air blower options.

Send Inquiry

Outstanding Features

1. Structure:The Flatbed Digital Printer features a solid machine chassis provides stable platform for long use life of 7-10 years. High quality table with excellent flatness as accurate printing platform with efficient vacuum suction and air blower options.

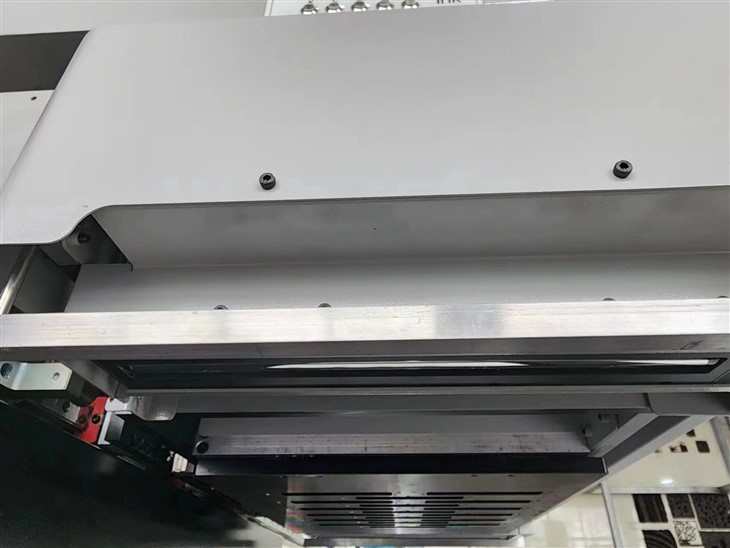

2. Driving System: Equipped with Maglev motion system and metal encoder strip at X axis to keep fast and smooth movement for accurate placement of ink drops, Dual servo motors+dual ball screws at Y axis for accurate output.

3. Negative Pressure: Advanced negative pressure system with accuracy of two decimal places for precise pressure control to achieve fluent printing result.

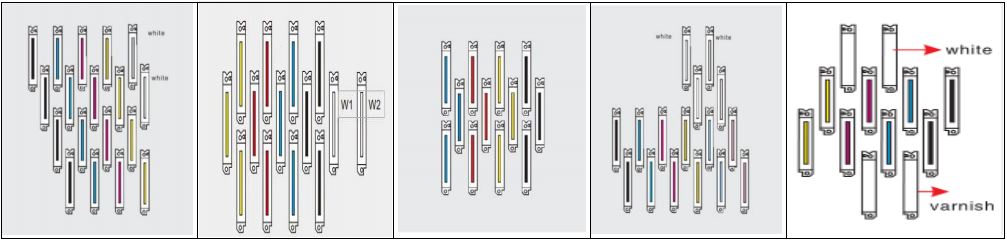

4. Excellent P.H.: Powered by high speed grey-scale KM1024A printheads as configuration of 2(CMYK)+2W, 3(CMYK)+2W and 4(CMYK) for mass production capability, and Varnish is optional for special application.

5. Friendly Operation: The Flatbed Digital Printer is designed for user-friendly operation, equipped with P.H anti-crash sensors, static eliminators, media locating pins, touch screen control panel, and automatic height adjustment system.

6. Custom Models: Optional with customized models with printing size of 2.5x4.0m, 2.5x6.0m, 3.2x2.5m, 3.2x6.0m for super format printing on a variety of applications

7. Ink Supply System: PLC controlled ink supply and stirring system to ensure reliable ink supply and fluent printing performance.

Specification Data

Model	Beyonder 3222		Beyonder 3225
Print Size	3.2x2.2m/10.5x7.2ft(W*L)		3.2x2.5m/10.5x8.2ft(W*L)
Table Type	Vacuum and Blower Table
Media Thickness	120mm/4.7inch
P.H. Type	Konica1024A/KM1800I
Number Of P.H.	8,10,12,14,15,16,18,24
Print Speed 3/4Rows	Draft mode	110m2/h	Draft mode	145m2/h
	Production mode	68m2/h	Production mode	95m2/h
	Quality mode	54m2/h	Quality mode	68m2/h
Colors Configuration	2(CMYK)+2W+2V; 3(CMYKLcLm)+2W; 4(CMYK);
Rip Software	Caldera, Photoprint, Onyx
Power Condition	Single Phase AC 220V, 8KW
Net Weight	2200Kgs		2600Kgs
Dimension	5500x2500x1500mm		5500x3000x1500mm
