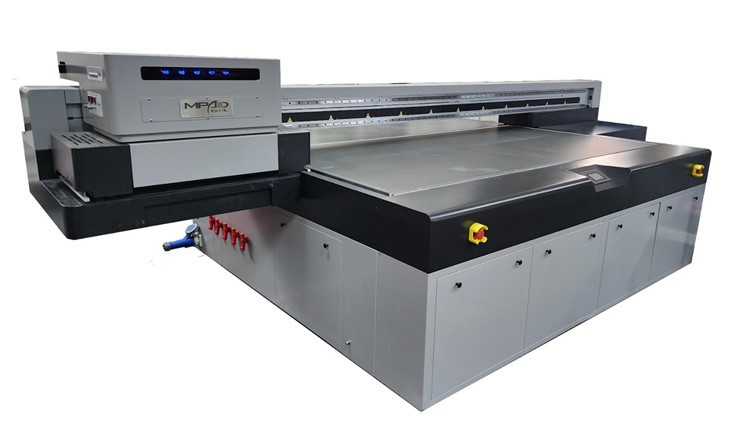

Outstanding Features

1. Frame Durability: The robust UV Digital Printer chassis ensures a stable platform, extending the operational life to 7-10 years. The high-quality table exhibits exceptional flatness, serving as a precise printing platform with efficient options for vacuum suction and air blowers.

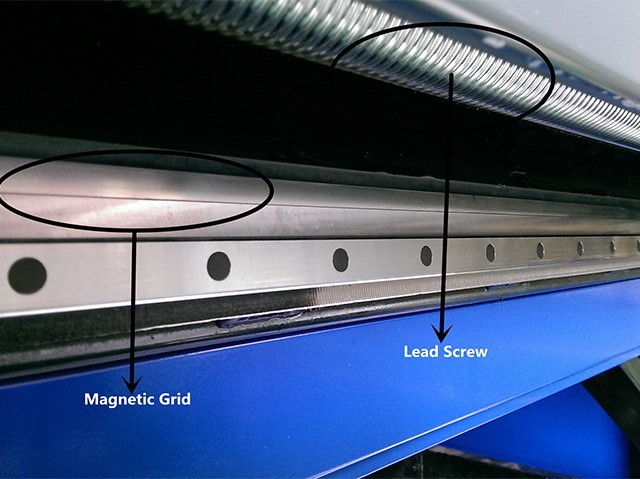

2. Motion Precision: The Maglev motion system and metal encoder strip on the X-axis facilitate swift and smooth movements for accurate ink drop placement. The Y-axis boasts dual servo motors and dual ball screws, ensuring precision in output.

3. Pressure Precision: The advanced negative pressure system for this UV Digital Printer, with two-decimal-place accuracy, allows precise pressure control for seamless printing results.

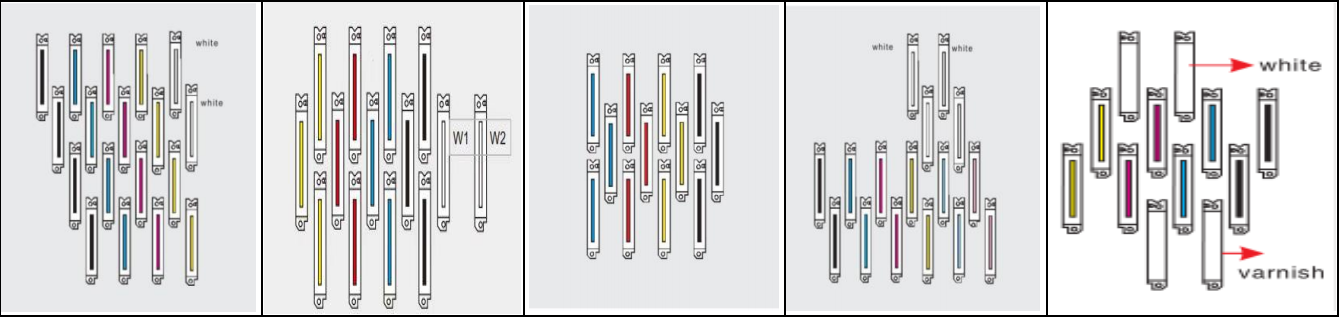

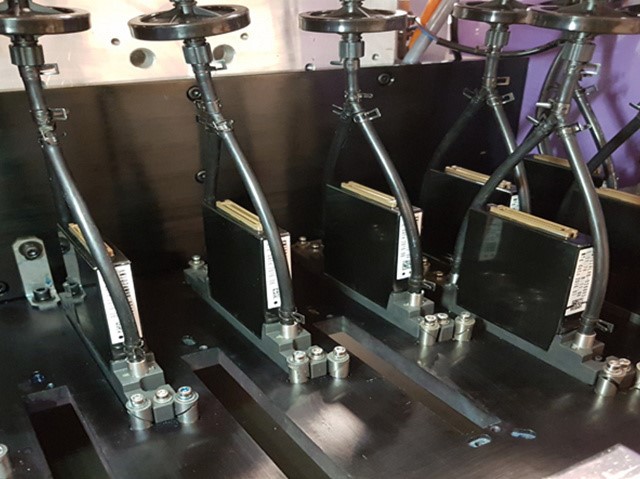

4. High-Performance Printheads: Empowered by high-speed grey-scale KM1024A printheads, configured as 2(CMYK)+2W, 3(CMYK)+2W, and 4(CMYK), it enables mass production. Varnish is optional for specialized applications.

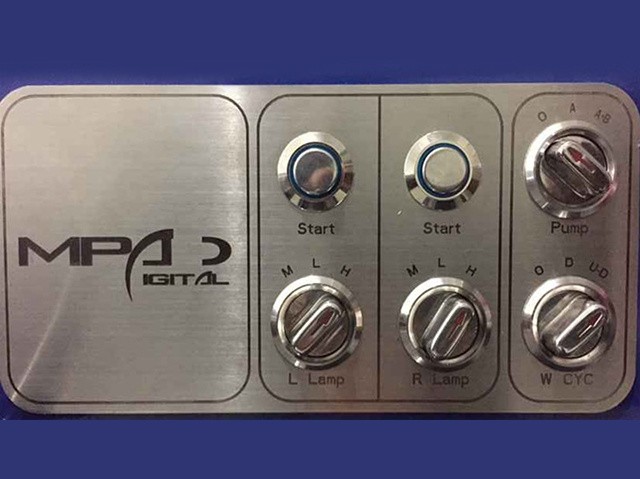

5. User-Friendly Interface: Equipped with anti-crash sensors for printhead protection, static eliminators, media locating pins, a touch screen control panel, and an automatic height adjustment system, ensuring a user-friendly and straightforward operation.

6. Tailored Solutions: Custom models are available, offering printing sizes of 2.5x4.0m, 2.5x6.0m, 3.2x2.5m, and 3.2x6.0m, catering to super format printing across various applications.

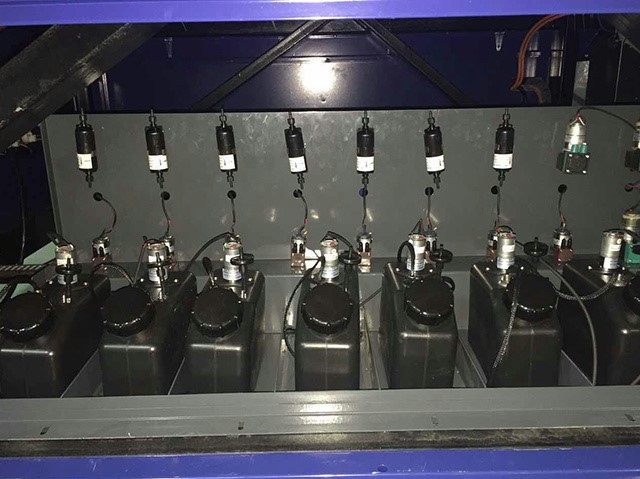

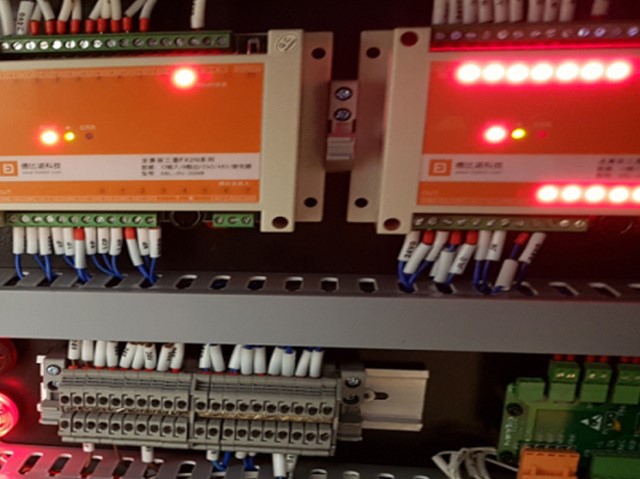

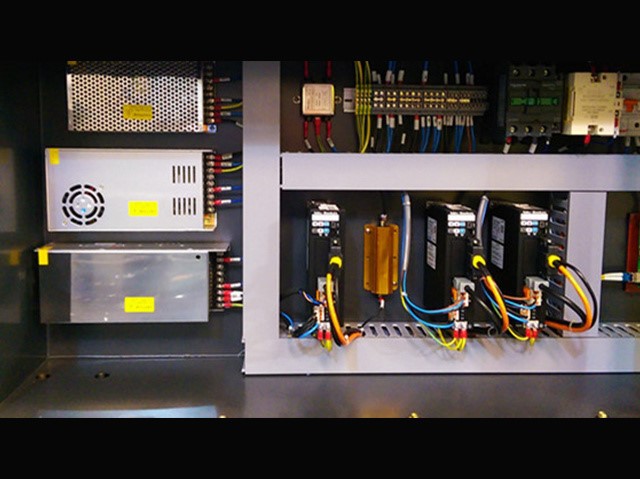

7. Ink Management: The ink supply system, controlled by PLC, guarantees reliable ink supply and consistent printing performance, aided by an integrated stirring system.

Specification Data

Model	Beyonder 2513
Print Size	2.5x1.3m/8.2x4.1ft
Table Type	Vacuum and Blower Table
Media Thickness	120mm/4.7inch
P.H. Type	Konica1024A/KM1800I
Number Of P.H.	8,10,12,14,15		16,18,24
Print Speed 3 rows/4 rows	Draft mode	100m2/h	Draft mode	135m2/h
	Production mode	60m2/h	Production mode	85m2/h
	Quality mode	50m2/h	Quality mode	60m2/h
Colors Configuration	2(CMYK)+2W+2V		4(CMYK)
	CMYK+(CMYK 2W)+CMYK		3(CMYK);3(CMYK)+3W
Rip Software	Caldera, Photoprint, Onyx
Power Condition	Single Phase AC 220V,5.5KW
Dimension	4500x2500x1500mm
