Selecting the right UV lamp for a UV inkjet printer is a crucial decision that can significantly impact the quality, efficiency, and overall performance of your printing operations. As a supplier of UV Inkjet Printers, I understand the importance of this choice and am here to guide you through the process.
Understanding the Basics of UV Lamps in UV Inkjet Printing
UV lamps play a vital role in UV inkjet printing. The primary function of a UV lamp is to cure the UV - curable inks used in these printers. When the UV light from the lamp hits the ink, it causes a chemical reaction that hardens the ink almost instantly. This results in high - quality prints with sharp details, vibrant colors, and excellent durability.
There are different types of UV lamps commonly used in UV inkjet printers, including mercury lamps and LED UV lamps. Mercury lamps have been around for a long time and are known for their high - intensity UV output. They can cure inks quickly and are suitable for a wide range of printing applications. However, they also have some drawbacks. Mercury lamps consume a large amount of energy, generate a significant amount of heat, and have a relatively short lifespan. They also contain mercury, which is a hazardous substance and requires special disposal procedures.
On the other hand, LED UV lamps are a more modern alternative. They offer several advantages over mercury lamps. LED UV lamps are energy - efficient, consuming up to 80% less energy than mercury lamps. They produce very little heat, which is beneficial as it reduces the risk of heat - related damage to the printing substrate. LED UV lamps also have a much longer lifespan, often lasting up to 20,000 hours or more, compared to the few thousand hours of mercury lamps. Additionally, they do not contain mercury, making them more environmentally friendly.
Factors to Consider When Choosing a UV Lamp
1. Printing Application
The type of printing you do is one of the most important factors in choosing a UV lamp. If you are printing on heat - sensitive materials such as plastics, thin papers, or certain fabrics, LED UV lamps are the better choice. Their low - heat output ensures that the substrate is not damaged during the curing process. For example, when printing on PVC cards or flexible packaging materials, the low - heat characteristic of LED UV lamps helps maintain the integrity of the material.
If you are involved in high - volume industrial printing where speed is of the essence, and the printing substrate can withstand high heat, mercury lamps might be more suitable. Their high - intensity UV output can cure inks very quickly, allowing for faster printing speeds. For instance, in large - scale printing of metal signs or glass panels, mercury lamps can ensure rapid curing and high - throughput production.
2. Ink Compatibility
Not all UV inks are compatible with all UV lamps. Different inks have different absorption spectra, which means they require specific wavelengths of UV light to cure effectively. When choosing a UV lamp, you need to ensure that its emission spectrum matches the absorption spectrum of the inks you are using. Most UV inks are formulated to be cured by either 365nm, 385nm, or 395nm wavelengths of UV light. LED UV lamps can be customized to emit specific wavelengths, providing better control over the curing process.
3. Cost
Cost is always a significant consideration in any business decision. When it comes to UV lamps, you need to consider both the initial purchase cost and the long - term operating cost. Mercury lamps are generally cheaper to purchase initially, but their high energy consumption and shorter lifespan mean that the long - term cost can be much higher. LED UV lamps, although more expensive upfront, offer significant savings in energy costs and replacement costs over time.
4. Curing Speed
The curing speed of the UV lamp is directly related to the printing speed. A faster - curing lamp allows for higher - speed printing, which can increase productivity. However, it's important to note that curing speed is also affected by other factors such as the type of ink, the thickness of the ink layer, and the printing substrate. LED UV lamps can offer fast curing speeds, especially when used with inks formulated for LED curing.
5. Lamp Intensity and Uniformity
The intensity of the UV lamp determines how effectively it can cure the ink. A lamp with higher intensity can cure the ink more quickly and thoroughly. Uniformity of the UV light across the printing area is also crucial. Uneven curing can result in inconsistent print quality, with some areas of the print being under - cured and others over - cured. When choosing a UV lamp, look for models that offer high - intensity and uniform UV output.
Our UV Inkjet Printer Offerings

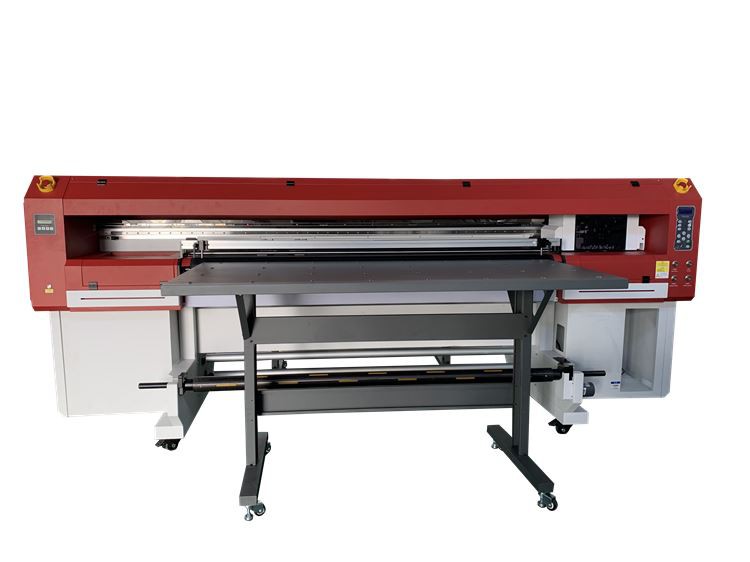

As a supplier of UV Inkjet Printers, we offer a range of printers that are compatible with both mercury and LED UV lamps. Our UV Hybrid Printer and UV Hybrid Printer Flatbed models are designed to provide high - quality printing results with various types of UV lamps.
We understand that every customer has unique printing requirements, and we are committed to helping you choose the right UV lamp for your specific needs. Our team of experts can provide you with detailed information about the different types of UV lamps, their performance characteristics, and how they can be integrated with our printers.
Making the Right Choice
To make the right choice, start by evaluating your printing application, ink requirements, budget, and production goals. Consider the advantages and disadvantages of each type of UV lamp and how they align with your needs. If you are unsure, don't hesitate to reach out to us. We can conduct a detailed analysis of your printing process and recommend the most suitable UV lamp for your UV inkjet printer.
Contact Us for Procurement and Consultation
If you are interested in purchasing a UV inkjet printer or need more information about choosing the right UV lamp, we encourage you to contact us. Our sales team is ready to assist you with all your procurement needs and provide you with in - depth consultation. We can also offer demonstrations of our printers and UV lamp systems to help you make an informed decision.
References
- "UV Curing Technology: Principles and Applications" by John W. Baur
- "Handbook of UV Coatings" edited by Peter K. T. Oldring
- Industry reports on UV inkjet printing technology and UV lamp performance
