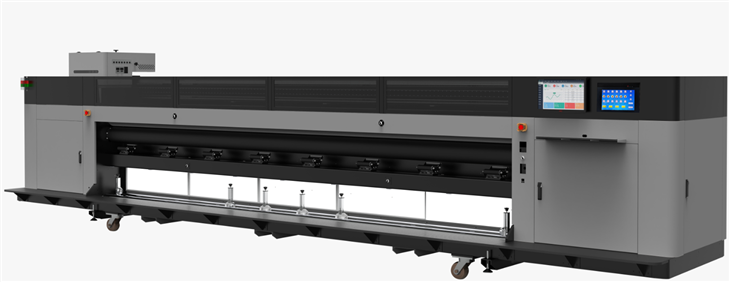

Product Introduction
A roll-to-roll UV printing machine is a continuous roll-to-roll UV output device suitable for high-speed, high-precision printing of long roll materials such as advertising fabrics, vehicle wraps, and flexible films.
Outstanding Features
High-efficiency Production Capacity
The roll-to-roll UV printing machine, equipped with industrial printheads, can achieve a printing speed of 120–210㎡/h in bidirectional printing mode, meeting the high-volume production needs of advertising and packaging.
Durable
The machine features a thickened steel frame and a machined aluminum alloy printhead mount, ensuring stable operation for 5–8 years.
Strong Adhesion And Weather Resistance
The UV ink layer cures instantly, is scratch-resistant and solvent-resistant, and can maintain its color for 2–3 years in outdoor use, making it suitable for long-term outdoor applications such as vehicle wraps and advertising banners.
High-precision Imaging
The printhead accuracy reaches 600–1200 dpi, combined with a constant tension paper feeding system, ensuring clear details in long-format images without splicing or deviation.
Specification Data
|
Model |
Beyonder 5200 RtR |
|||
|
Print Size |
5200mm |
|||
|
Platform |
Water cooling with Vacuum Suction |
|||
|
Media Thickness |
0.18-2.0mm |
|||
|
P.H. Type |
Konica1024A |
|||
|
Number Of P.H. |
12,14,18 |
16,24 |
||
|
Print Speed 3/4 rows |
Draft mode |
158m2/h |
Draft mode |
210m2/h |
|
Production mode |
120m2/h |
Production mode |
160m2/h |
|
|
Quality mode |
60m2/h |
Quality |
80m2/h |
|
|
Colors Configuration |
3(CMYK )+2W |
4(CMYK) |
||
|
3(CMYK Lc Lm) |
4(CMYK Lc Lm) |
|||
|
Rip Software |
Caldera, Photoprint |
|||
|
Power Condition |
Single Phase AC 220V,9.8KW |
|||
|
Dimension |
7800x1600x1800mm |
|||
Multiple Printheads Configuration
Applications
Details
Frequently Asked Questions
Q: What pre-sales services do you provide? What is the delivery cycle?
A: For pre-sales services, MPAD provides free printed samples; shipping costs will be charged based on the actual situation. Our delivery cycle is one month after order confirmation.
Q: How can we obtain service and technical support?
A: MPAD provides timely service and support, including technical consultation, design, customization, on-site installation, operation training, application solution training, troubleshooting support, etc. You can obtain our service and support through your local authorized dealer.
Q: Do you handle on-site installation?
A: Yes. MPAD's experienced engineers or skilled engineers assigned by the dealer are responsible for on-site installation and commissioning after the machine arrives. If this service cannot be provided, we will specify this in the contract.
Q: What are the training time and location?
A: We provide approximately 7 working days of free on-site training. Training can be conducted at our company or at the customer's designated installation site. These details can be specified in the contract.
Q: How does this equipment work?
A: The equipment sprays UV ink droplets onto the roll material surface through the printhead, and the UV lamp array instantly cures the ink, achieving continuous color output.
Q: What materials can the roll-to-roll UV printing machine print on?
A: It supports roll materials such as PVC, PET, PP, automotive film, and lightbox fabric.
Q: How is routine maintenance performed?
A: This includes printhead moisturizing, ink path cleaning, and paper roller inspection.
Q: Is printhead replacement difficult?
A: No. The modular printhead design allows for quick disassembly and replacement without complex calibration.
Q: Can it print continuously for extended periods?
A: Yes. The industrial stepping system and heat dissipation design support 24-hour continuous printing.
