Outstanding Features
Compact design
Compact design with print size of 60x50 or 60x90cm( W*L) for saving room purpose.

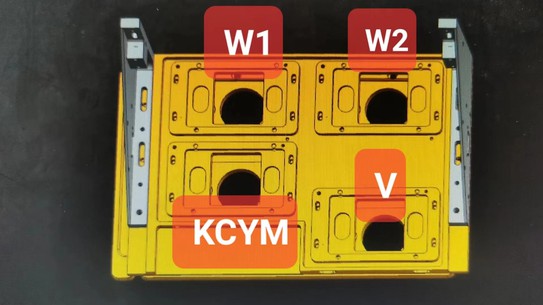

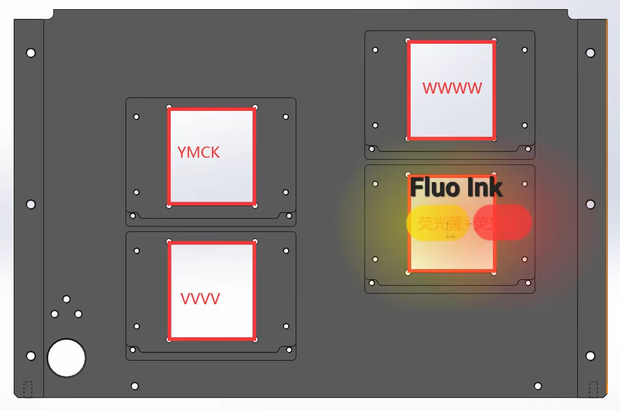

Color configuration
Multiple colors configuration of colors, white and varnish, Fluo Yellow and Fluo Magenta optional for more applications.
AI Positioning System
Install camera scanning system to locate and print the objects automatically .
Driving System
Adopt central ball screw in Y direction for accurate prints output.
Round Objects Prints
Optional with round objects printing facility to print on round objects.
Specification Data
|
Model Name |
Spirit A1/A2 |
||
|
Table Type |
Vacuum Table With Vacuum Pump |
||
|
Driving in Y axis |
Ball Screw |
||
|
Printhead QTY/type |
2-3 Espon i3200-u1 |
||
|
Max Print Size |
60x90/60x50cm(W*L) |
||
|
Print Thickness |
190mm; custom 300mm |
||
|
Round objects Printing |
Optional with Round objects printing facility |
||
|
Anti-Crash Device |
Included |
||
|
Static Eliminator |
Optional |
||
|
Height Adjustment |
Automatic Detecting |
||
|
UV Lamp |
Dual LED lamps+Separate lamp for Varnish |
||
|
Ink Supply System |
Continuous ink supply |
||
|
White Ink Recirculaiton |
Included |
||
|
Stirring System |
White Ink Stirring |
||
|
Printhead Maintenance |
Automatic Ink cleaning |
||
|
Colors |
CMYK+W; CMYK+W+CMYK; CMYK+W+V; W+CMYK+FLUO Y/M+V |
||
|
Printing Materials |
Acrylic, Foamboard, Wood, Ceramic, Metal Plate, PVC, Glass, Leather ect. |
||
|
Highest Resolution |
2880DPI |
||
|
Print Speed |
Printhead Mode |
4Color/P.H. |
|
|
|
|
||
|
Quality Mode |
3.5 m2/h |
||
|
Production Mode |
7 m2/h |
||
|
Draft Mode |
10 m2/h |
||
|
Rip Software |
Photoprint |
||
|
Net Weight |
250/200Kgs |
||
|
Dimensions |
160x170x110cm |
120x170x110cm |
|
|
Packing Size |
180x180x90cm |
140x180x90cm |
|
|
Power Requirement |
AC220V,50/60HZ 2.2KW/0.8KW for Printer; 1.5KW/ 0.75KW for Vacuum pump |
||
|
Working Condition |
Clean Room T(20℃-28℃),H(40%-60%) |
||
Applications


Details
