Outstanding Features
1. Driving System:
This Hybrid Printer features a high-quality conveyor belt with sectional vacuum suction and an automatic anti-deviation system to keep flexible and rigid materials firmly in place on the printing platform, preventing media skew or wrinkles.
2. LED Curing:
Utilizing an LED UV curing system for power-saving purposes and reducing heat on various media types, applicable to many materials.
3. Loop Control:
Incorporating loop-controlled media feeding and a take-up system, the Hybrid Printer ensures more stable and efficient material feeding and collection.
4. Printhead:
Powered by state-of-the-art printheads for mass production capability, with a print speed of 180 sqm in production mode and up to 260 sqm in draft printing mode. It features advanced grayscale printing technology with variable ink drops of 6/12/18pl.
5. Maglev Tech:
Equipped with a Maglev driving system and a metal encoder raster on the X-axis, the Hybrid Printer achieves reliable and smooth movement and accurate placement of ink drops at super printing speeds. It saves 30% ink consumption compared to older technologies.
Parameter
|
Model |
Byonder Hybrid3200 |
|||
|
Print size |
3200m |
|||
|
Thickness |
34mm |
|||
|
P.H. Type |
KM1024a |
KM1024a |
||
|
P.H. QTY |
8,12,14,15 |
16,24 |
||
|
Print Speed |
720dpi |
200m2/h |
720dpi |
260m2/h |
|
1080dpi |
140m2/ |
|||
|
1080dpi |
180m2/h |
|||
|
1440dpi |
90m2/h |
|||
|
Color Configuration |
2(CMYK)+2W+2V |
4(CMYK) |
||
|
CMYK+(CMYK WW)+CMYK |
||||
|
4(CMYK LcLm) |
||||
|
3(CMYK)+3W |
||||
|
RIP Software |
Caldera GrandRip Photoprint Server |
|||
|
Dimensions |
5.7x1.6x1.6m |
|||

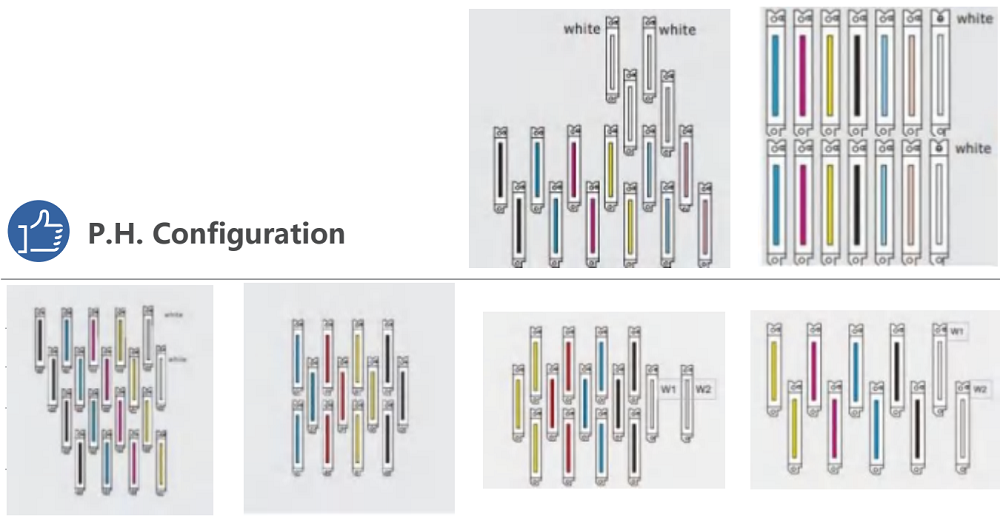

P.H. Configuration

Applications
