Outstanding Features

1. Driving System:

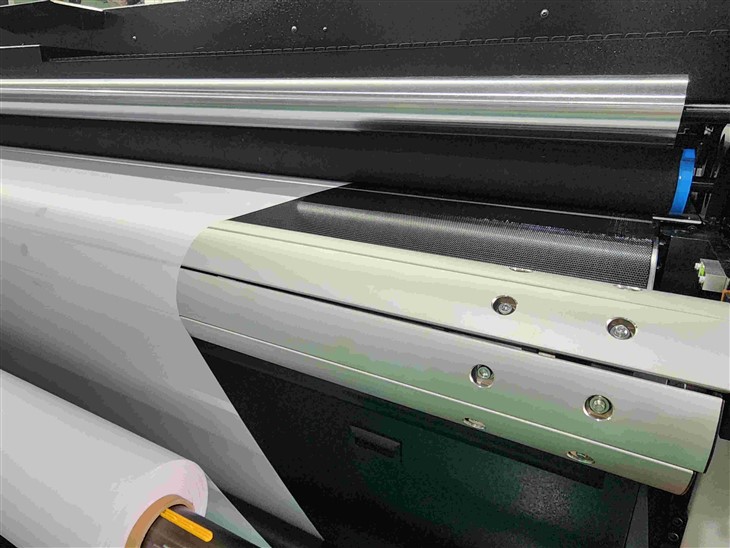

High quality conveyor belt with suction sections and adjustable vacuum power, adopts automatic anti-deviation system keeps both rigid and flexible materials stay firmly on printing platform to prevent media skew or wrinkle.

2. Versatile:

Adopt PLC control ink supply and white stirring system for reliable printing output. Integration of control buttons and alarm information into touch screen as friendly interface for easy operation.

3. Printhead

This hybrid printing machine powered by state-of-the-art P.H. for mass production capability, printing speed up to 180sqm at production mode. Advanced grey-scale printing technology with variable ink drops of 6/12/18pl for excellent output.

4. Maglev Tech

Equipped with Maglev driving system and metal encoder raster at X axis to achieve reilable and smooth movement and accurate placement of ink drops with super printing speed. 30% ink consumption saved compared with old technologies.

5. Loop Control

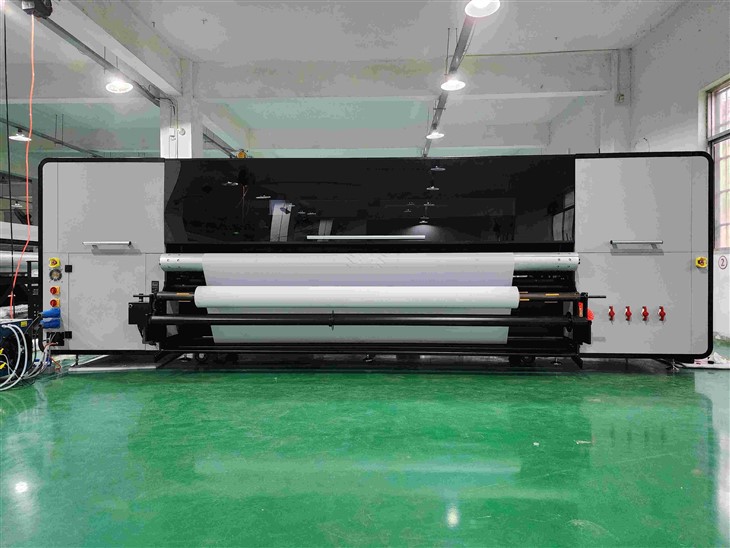

Loop controlled roll media winding and rewinding system ensure stable and efficient materials feeding and collecting.

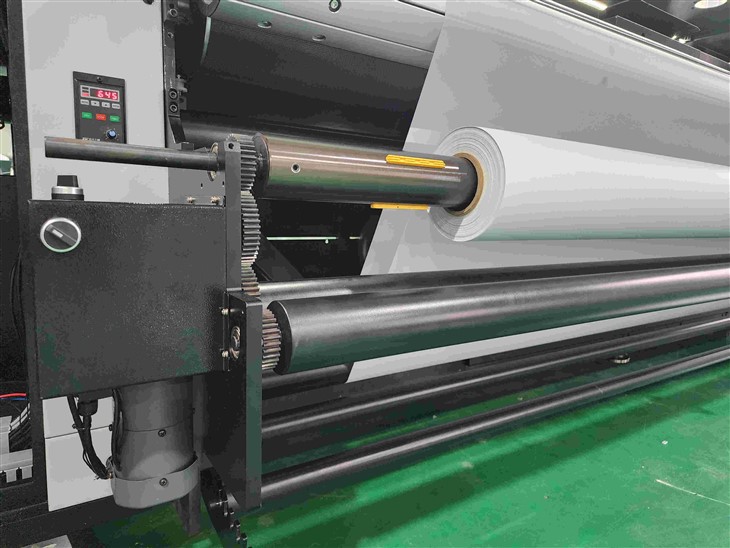

Install dual steel rollers, inflatable rollers and balancing roller for different flexible media printing smoothly.

6. LED Curing

The hybrid printing machine is using LED UV curing system for power saving purpose, and less heat on media which is applicable to many a materials

Parameter

Model	Byonder Hybrid3200
Print size	3200m
Thickness	35mm/50mm (customize)
P.H. Type	KM1024a-6PL		KM1024a-6PL
P.H. QTY	10,12,14,16,18		16,24,32(customize)
Print Speed 3/4 rows	Draft	120㎡/h	Draft	160㎡/h
	Production	105㎡/h
			Production	130㎡/h
	Quality	60㎡/h
Color Configuration	2(CMYK)+2W+2V		4(CMYK) 8(CMYK)
	CMYK+CMYK WW+CMYK+VV
			4(CMYK LcLm)
	3(CMYK Lc Lm)+WW
RIP Software	Photoprint/ Caldera GrandRip, Onyx
Dimensions	5620x1680x1800mm
