Hybrid UV Printing Machine

1. Driving Mechanism: This hybrid UV printing machine utilizes a high-quality conveyor belt with vacuum suction and an automatic anti-deviation feature to secure flexible and rigid materials on the printing platform, ensuring smooth printing and preventing media distortion.
2. LED Curing Technology: This hybrid UV printing machine employs an advanced LED UV curing system to minimize power consumption and reduce heat damage to various materials.
3. Loop Control: Features a loop control mechanism for smoother and more efficient media feeding and collection, ensuring stable control and a productive printing process for the hybrid UV printing machine.

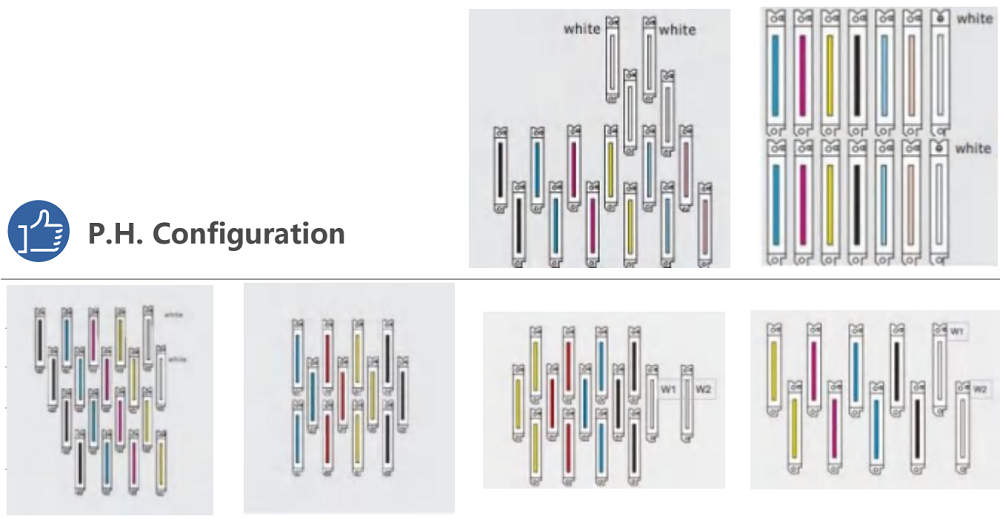

4. Printhead: Equipped with cutting-edge P.H. technology, enabling high-speed printing of up to 180 sqm in production mode and 260 sqm in draft mode. Includes advanced features like grey-scaling and variable ink drops (6/12/18pl).
5. Maglev Technology: Incorporates a Maglev driving system and metal encoder raster at the X-axis for reliable motion control and precise ink droplet placement, with a 30% reduction in ink consumption compared to older technologies.
